8mm to 6.35mm Shaft Coupling Xnrtop Flexible Aluminum 25mm

Description

Product Overview

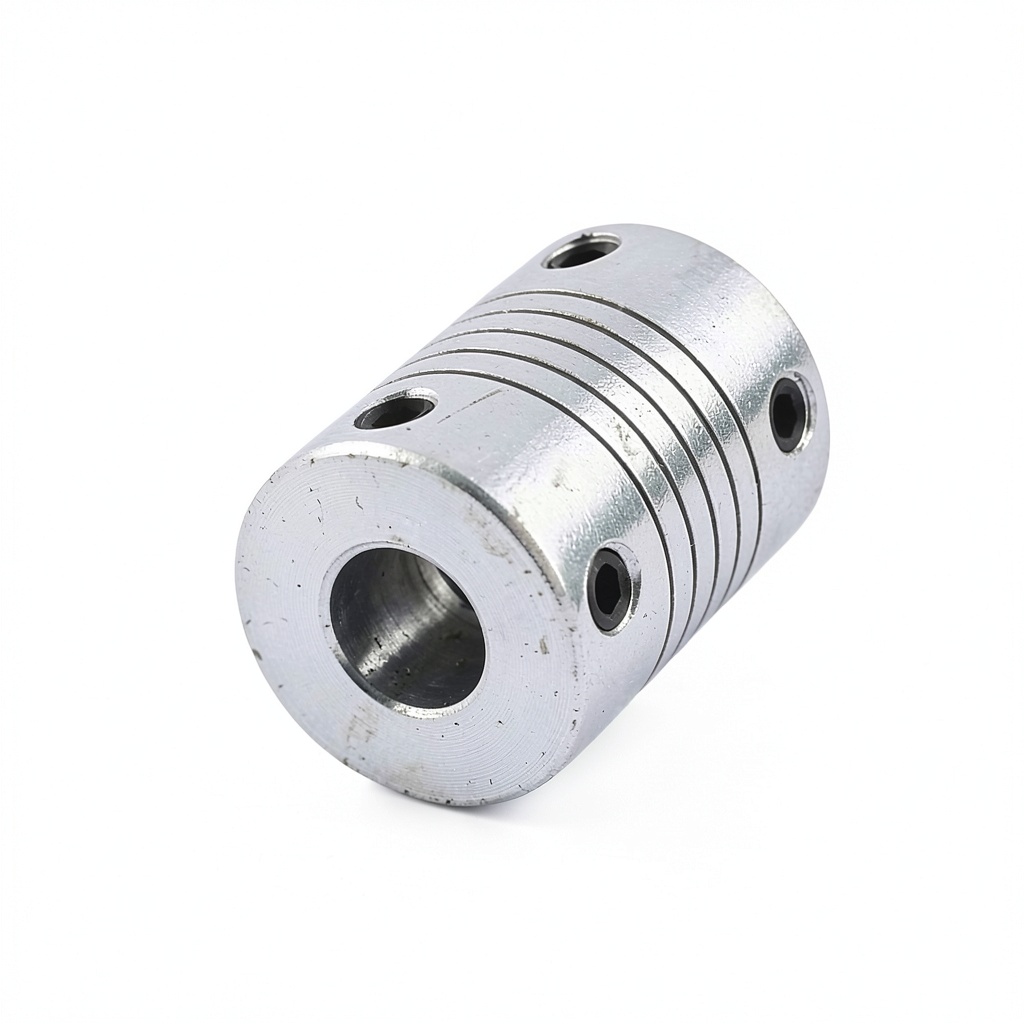

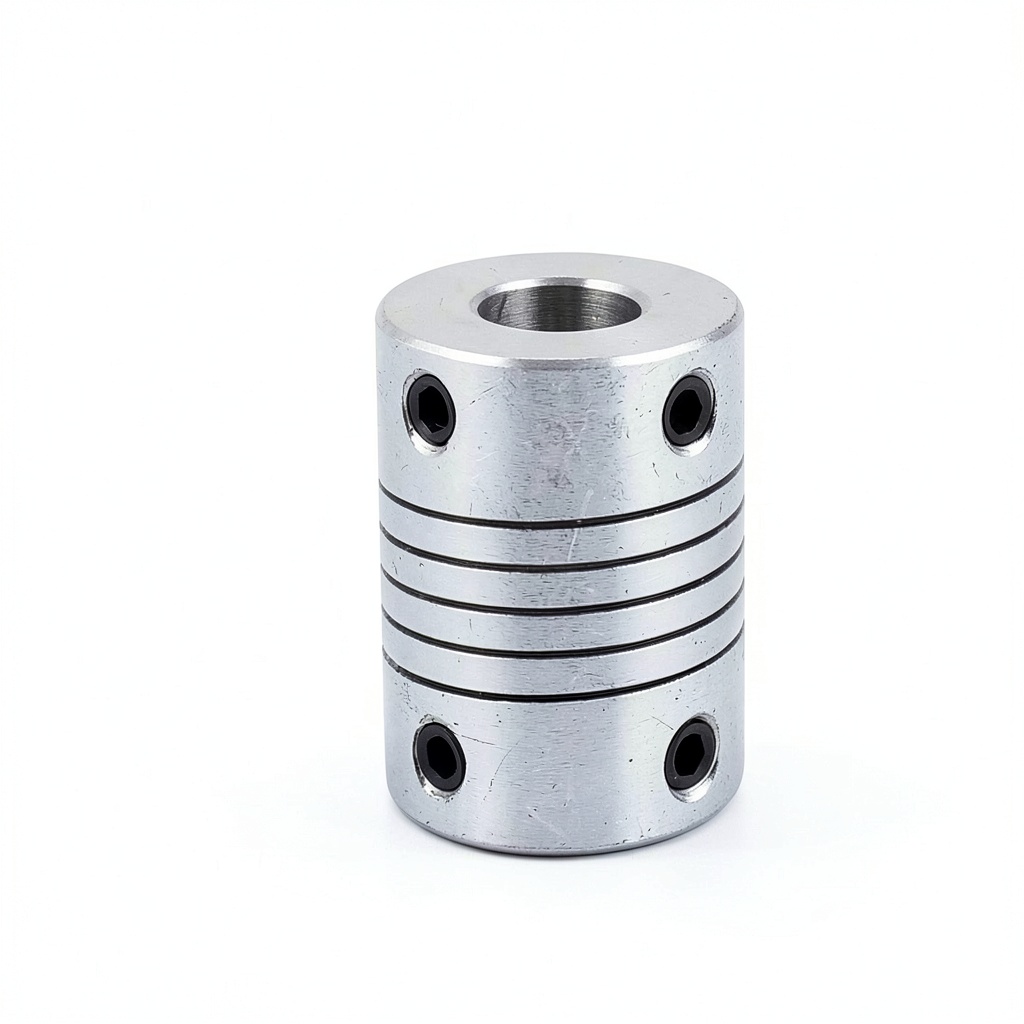

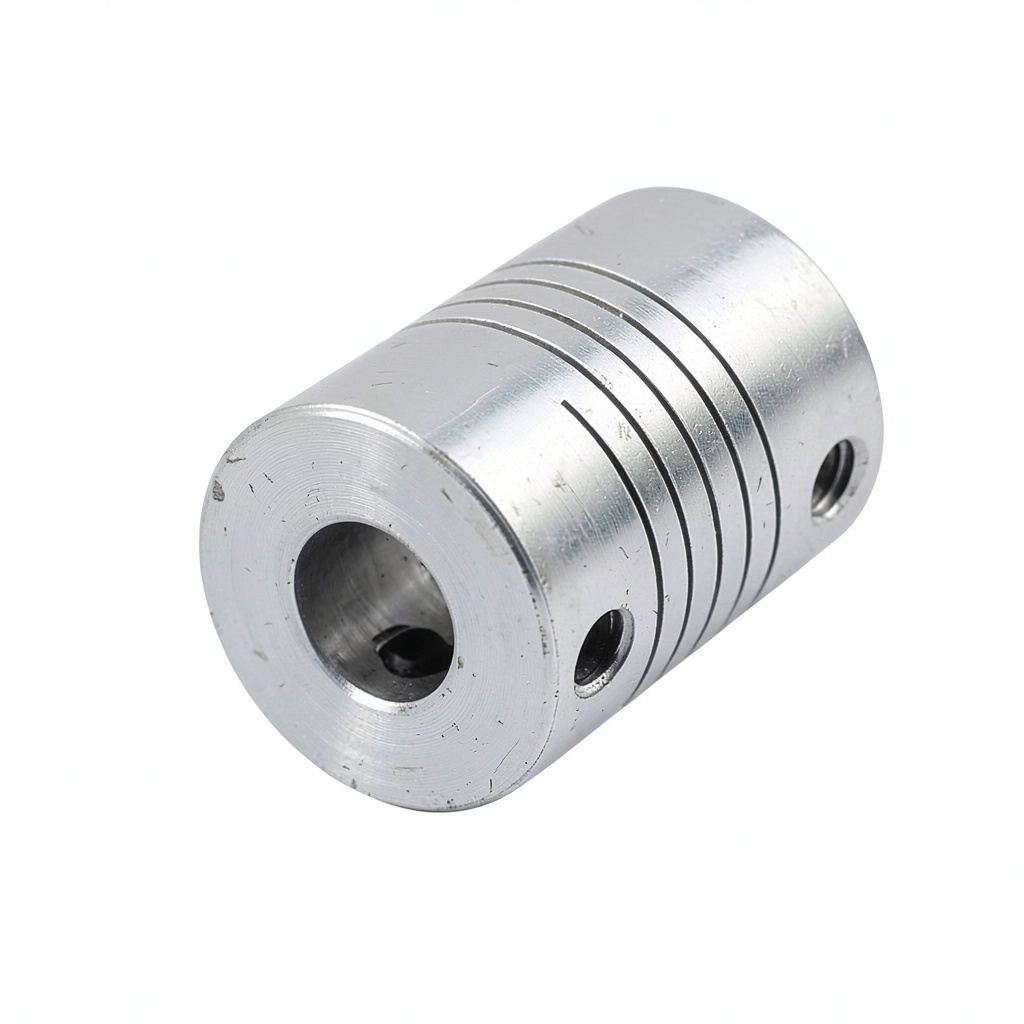

The Xnrtop 8mm to 6.35mm shaft coupling is engineered from high‑grade aluminum alloy, delivering a balance of strength and lightweight performance. With a precise 25mm overall length and an 18mm shaft diameter, the coupling fits seamlessly into compact drive systems where space is at a premium. The design incorporates set‑screw (coiling clamp) fasteners that provide a repeatable, secure attachment to both motor and driven shafts, eliminating slippage even under variable loads.

Its flexible beam construction allows a small amount of angular misalignment, reducing torsional stress transmitted between the motor and the driven component. This flexibility helps to protect delicate equipment such as encoders, lead screws, and small pumps from premature wear caused by vibration or shock loads. The silver‑tone finish not only offers a professional appearance but also resists corrosion, extending the service life in demanding industrial environments.

Key specifications include a model designation of 8×6.35mm (D18×L25), a weight of just 0.71 ounces, and compliance with standard ISO coupling dimensions. The product is packaged in a convenient pack of two, making it an economical choice for hobbyists and professionals alike who need reliable, interchangeable couplings for multiple machines.

Usage

This coupling is ideally suited for a wide range of applications in the 3D printing and CNC machining sectors. It connects stepper motors to extruder gears, drive belts, or lead screws, ensuring smooth torque transfer while accommodating minor shaft misalignments. The lightweight aluminum construction helps to keep moving masses low, which is critical for high‑speed printing and rapid positioning tasks.

Beyond additive manufacturing, the coupling finds use in precision instrumentation, such as rotary encoders and small pump assemblies, where accurate motion control and reduced vibration are essential. Its compact size also makes it a popular choice for robotics projects, allowing hobbyists to build reliable drive trains without sacrificing performance.

For industrial settings, the coupling can be employed in light‑to‑medium duty drive systems, including feed rollers and gear trains, where its torsional flexibility helps to dampen shock loads and extend component lifespan. The set‑screw installation method ensures quick, tool‑free assembly, facilitating rapid maintenance and downtime reduction.

Why Choose Us

Choosing the Xnrtop coupling means selecting a product that combines precision engineering with cost‑effective manufacturing. Each unit undergoes rigorous quality control checks to verify dimensional accuracy, material integrity, and fastening reliability, ensuring that you receive a component that meets or exceeds industry standards.

Our couplings are produced using CNC‑machined aluminum alloy, which provides superior strength‑to‑weight ratios compared to traditional steel couplings. This results in lower inertia, faster acceleration, and reduced energy consumption for motor‑driven systems. Additionally, the aluminum alloy offers excellent thermal conductivity, helping to dissipate heat generated during prolonged operation.

We stand behind our products with responsive customer support and a clear warranty policy. Should you encounter any issues during installation or operation, our technical team is ready to provide guidance, replacement parts, or troubleshooting assistance, ensuring that your projects stay on schedule.

Key Features

• Aluminum alloy construction provides lightweight strength and corrosion resistance.
• Set‑screw clamping ensures a secure, repeatable connection without slippage.
• Flexible beam design absorbs torsional stress, protecting motor and driven parts.
• Compact 25mm length fits tight spaces in 3D printers, CNC machines, and robotics.
• Responsive after‑sales support and warranty for peace of mind.

FAQ

What shaft sizes does this coupling support?

The coupling is designed for an 8mm motor shaft and a 6.35mm driven shaft, corresponding to a D18 (18mm) bore on the driven side.

Can I install this coupling without special tools?

Yes. The set‑screw (coiling clamp) fasteners can be tightened with a standard hex wrench, allowing quick installation and removal.

Is the aluminum alloy suitable for high‑temperature environments?

Aluminum alloy maintains its mechanical properties up to moderate temperatures (around 150 °C). For extreme heat applications, a steel coupling may be more appropriate.

How many units are included in the package?

Each order contains a pack of two identical couplings, providing a spare or allowing installation on dual‑motor setups.

Will this coupling work with stepper motor drivers that have built‑in current limiting?

Yes. The coupling’s low inertia and flexible design complement stepper drivers with current limiting, helping to reduce motor heating and improve overall system stability.
